CS5826

Dual Pixel LVDS Display Interface (LDI) Transmitter

CS5826 Features

* Complies with OpenLDI specification for digital display interface.

* 30 to 112 (224)MHz clock support.

* Supports SVGA through QXGA panel resolutions.

* Drives long, low cost cables.

* DC balance data transmission to reduce ISI distortion.

* Supports

CS5826 General Description

The CS5826 converts 48 bits (Dual pixel 24-bit color) of CMOS/TTL data into 8 LVDS (Low Voltage Differential Signalling) data streams. Control signals (VSYNC, HSYNC, DE and two user-defined signals) are sent during blanking intervals. The CS5826 provides 3 operating modes: SingleIn-Single-Out, Dual-.

CS5826 Datasheet (228.52 KB)

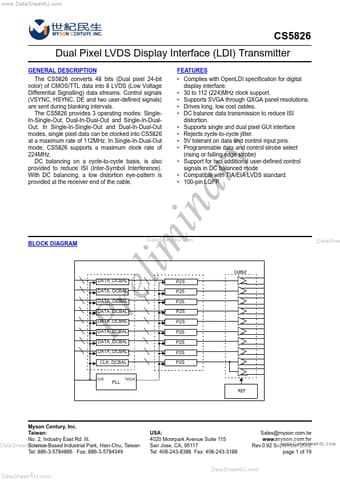

Preview of CS5826 PDF

Datasheet Details

Part number:

CS5826

Manufacturer:

Myson Technology

File Size:

228.52 KB

Description:

Dual pixel lvds display interface (ldi) transmitter.
