NCE0157 - N-Channel Enhancement Mode Power MOSFET

Product Overview

NCE Power Semiconductor

📥 Download Datasheet

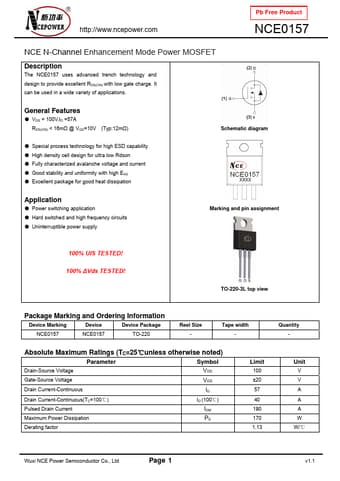

NCE0157 N-Channel Enhancement Mode Power MOSFET by NCE Power Semiconductor - Datasheet Preview — Datasheet preview – NCE0157

Datasheet Details

Part number	NCE0157
Manufacturer	NCE Power Semiconductor
File Size	336.06 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	NCE0157 Datasheet
Additional preview pages of the NCE0157 datasheet.

Product details

Description

The NCE0157 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS = 100V,ID =57A RDS(ON) < 16mΩ @ VGS=10V (Typ:12mΩ).
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation Schematic diagram.
