NCE0159

N-Channel Enhancement Mode Power MOSFET

NCE0159 Features

* VDS = 100V,ID =59A RDS(ON) < 15mΩ @ VGS=10V (Typ:11mΩ) Schematic diagram

* Special process technology for high ESD capability

* High density cell design for ultra low Rdson

* Fully characterized avalanche voltage and current

* Good stability and uniformity with high EAS

NCE0159 Datasheet (393.88 KB)

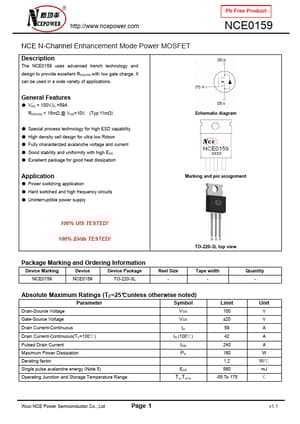

Preview of NCE0159 PDF

Datasheet Details

Part number:

NCE0159

Manufacturer:

NCE Power Semiconductor

File Size:

393.88 KB

Description:

N-channel enhancement mode power mosfet.
