UPB588G, UPB588B DIVIDE BY 128/64 PRESCALER

NEC

Description

2.5 GHz UPB588B DIVIDE- BY- 128/64 PRESCALER UPB588G .
The UPB588 series of devices are silicon bipolar digital prescalers which can be operated in divide-by-64 or divide-by128 mode.

📥 Download Datasheet

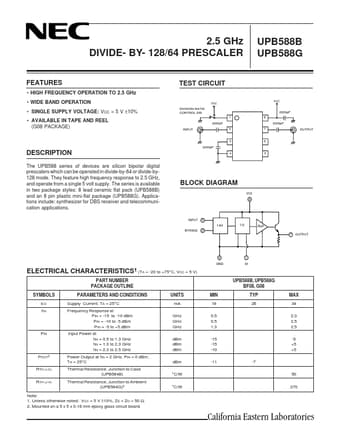

UPB588G Datasheet Preview — This datasheet PDF includes multiple part numbers: UPB588G, UPB588B. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: UPB588G, UPB588B
Manufacturer: NEC
File Size: 63.80 KB
Datasheet: UPB588B-NEC.pdf
Description: DIVIDE BY 128/64 PRESCALER
Note: This datasheet PDF includes multiple part numbers: UPB588G, UPB588B.
Please refer to the document for exact specifications by model.

Features

* HIGH FREQUENCY OPERATION TO 2.5 GHz
* WIDE BAND OPERATION
* SINGLE SUPPLY VOLTAGE: VCC = 5 V ±10%

Applications

* include: synthesizer for DBS receiver and telecommunication applications. TEST CIRCUIT DIVISION RATIO CONTROL SW. INPUT VCC 2200pF 1 2 2200pF 3 4 VCC 2200pF 8 2200pF 7 OUTPUT 6 5 BLOCK DIAGRAM VCC 8 INPUT 2 BYPASS 3 1/64 1/2 Buff. 7 OUTPUT ELECTRICAL CHARACTERISTICS1 (TA = -20 to +7
