UPC2756TB - MIXER+OSCILLATOR SILICON MMIC

UPC2756TB Description

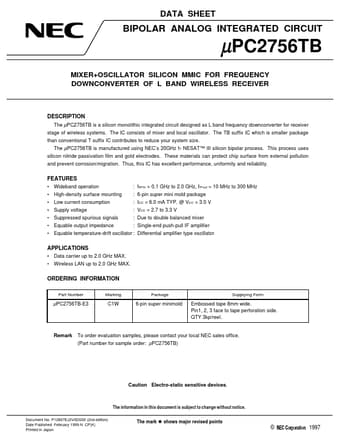

DATA SHEET DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µPC2756TB MIXER+OSCILLATOR SILICON MMIC FOR FREQUENCY DOWNCONVERTER OF L BAND WIRELESS RECE.
The µPC2756TB is a silicon monolithic integrated circuit designed as L band frequency downconverter for receiver stage of wireless systems.

UPC2756TB Features

* Wideband operation
* High-density surface mounting
* Low current consumption
* Supply voltage
* Suppressed spurious signals
* Equable output impedance : fRFin = 0.1 GHz to 2.0 GHz, fIFout = 10 MHz to 300 MHz : 6-pin super mini mold package : ICC = 6.

UPC2756TB Applications

* Data carrier up to 2.0 GHz MAX.
* Wireless LAN up to 2.0 GHz MAX. ORDERING INFORMATION Part Number Marking Package Supplying Form µPC2756TB-E3 C1W 6-pin super minimold Embossed tape 8mm wide. Pin1, 2, 3 face to tape perforation side. QTY 3kp/reel. Remark To order evaluation
