NTE7008 - Integrated Circuit Color TV/Video / Chroma / Deflection Circuit

NTE Electronics

The NTE7008 by NTE Electronics is a Integrated Circuit Color TV/Video / Chroma / Deflection Circuit. Below is the official datasheet preview.

📥 Download Datasheet

NTE7008 Integrated Circuit Color TV/Video / Chroma / Deflection Circuit by NTE Electronics - Datasheet Preview — Official preview page of the **NTE7008** Integrated Circuit Color TV/Video / Chroma / Deflection Circuit datasheet (NTE Electronics).

Datasheet Details

Part number	NTE7008
Manufacturer	NTE Electronics
File Size	28.21 KB
Description	Integrated Circuit Color TV/Video / Chroma / Deflection Circuit
Datasheet	NTE7008_NTEElectronics.pdf

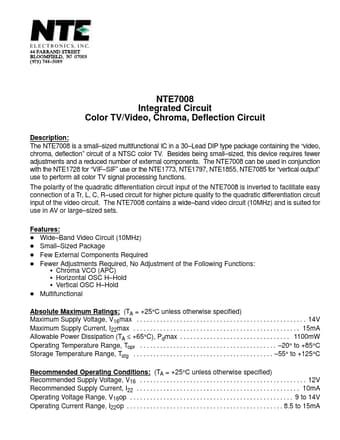

Additional preview pages of the NTE7008 datasheet.

NTE7008 Product details

Description

The NTE7008 is a small sized multifunctional IC in a 30 Lead DIP type package containing the “video, chroma, deflection” circuit of a NTSC color TV. sized, this device requires fewer adjustments and a reduced number of external components. SIF” use or the NTE1773, NTE1797, NTE1855, NTE7085 for “vertical output” use to perform all color TV signal processing functions.

Features

D Wide.
Band Video Circuit (10MHz) D Small.
Sized Package D Few External Components Required D Fewer Adjustments Required, No Adjustment of the Following Functions: S Chroma VCO (APC) S Horizontal OSC H.
Hold S Vertical OSC H.
Hold D Multifunctional Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage, V16max.
. 14V Maximum Supply Current, I22m.
