NTE7142 - Integrated Circuit +5V-Powered / Multichannel RS-232 Driver/Receiver

NTE Electronics

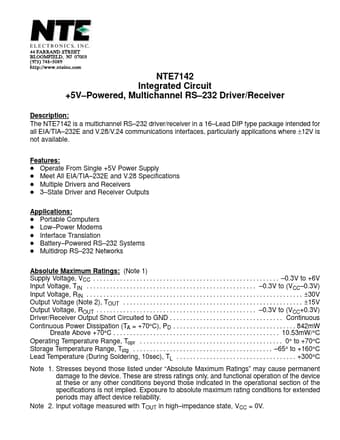

NTE7142 Datasheet Preview — Preview of NTE7142 PDF

Datasheet Details

Part number	NTE7142
Manufacturer	NTE Electronics
File Size	27.60 KB
Description	Integrated Circuit +5V-Powered / Multichannel RS-232 Driver/Receiver
Datasheet	NTE7142_NTEElectronics.pdf

NTE7142 Product details

Description

The NTE7142 is a multichannel RS 232 driver/receiver in a 16 Lead DIP type package intended for all EIA/TIA 232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.

Features

D Operate From Single +5V Power Supply D Meet All EIA/TIA.
232E and V.28 Specifications D Multiple Drivers and Receivers D 3.
State Driver and Receiver Outputs.
