NTE7145 - Intergrated Circuit 18W BTL x 2 Ch Audio Power Amplifier

NTE Electronics

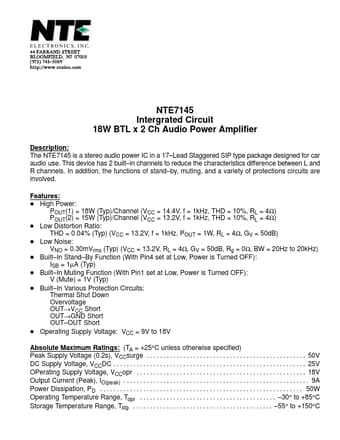

NTE7145 Datasheet Preview — Preview of NTE7145 PDF

Datasheet Details

Part number	NTE7145
Manufacturer	NTE Electronics
File Size	26.29 KB
Description	Intergrated Circuit 18W BTL x 2 Ch Audio Power Amplifier
Datasheet	NTE7145_NTEElectronics.pdf

NTE7145 Product details

Description

The NTE7145 is a stereo audio power IC in a 17 Lead Staggered SIP type package designed for car audio use. in channels to reduce the characteristics difference between L and R channels. by, muting, and a variety of protections circuits are involved.

Features

D High Power: POUT(1) = 18W (Typ)/Channel (VCC = 14.4V, f = 1kHz, THD = 10%, RL = 4Ω) POUT(2) = 15W (Typ)/Channel (VCC = 13.2V, f = 1kHz, THD = 10%, RL = 4Ω) D Low Distortion Ratio: THD = 0.04% (Typ) (VCC = 13.2V, f = 1kHz, POUT = 1W, RL = 4Ω, GV = 50dB) D Low Noise: VNO = 0.30mVrms (Typ) (VCC = 13.2V, RL = 4Ω, GV = 50dB, Rg = 0Ω, BW = 20Hz to 20kHz) D Built.
In Stand.
By Function (With Pin4 set at Low, Power is Turned OFF): ISB = 1µA (Typ) D Built.
In Muting Function (With.
