NTE7144 - Integrated Circuit BIMOS Operational Amplifier w/MOSFET Input / Bipolar Output

NTE Electronics

NTE7144 Datasheet Preview — Preview of NTE7144 PDF

Datasheet Details

Part number	NTE7144
Manufacturer	NTE Electronics
File Size	31.96 KB
Description	Integrated Circuit BIMOS Operational Amplifier w/MOSFET Input / Bipolar Output
Datasheet	NTE7144_NTEElectronics.pdf

NTE7144 Product details

Description

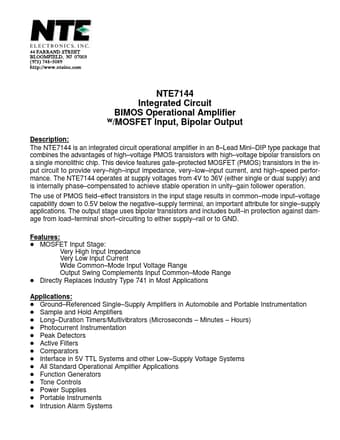

The NTE7144 is an integrated circuit operational amplifier in an 8 Lead Mini DIP type package that combines the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip.

Features

gate.
protected MOSFET (PMOS) transistors in the input circuit to provide very.
high.
input impedance, very.
low.
input current, and high.
speed performance. The NTE7144 operates at supply voltages from 4V to 36V (either single or dual supply) and is internally phase.
compensated to achieve stable operation in unity.
gain follower operation. The use of PMOS field.
effect transistors in the input stage results in common.
mode i.
