* Internally biased
* Flat gain
* High linearity with an IP3O of 40 dBm and an IP2O of 60 dBm
* Noise figure of 3.1 dB
* 75 input and output impedance
* Operating from 5 V to 8 V supply 1.3 Applications
* General wideband amplifiers.
* CATV return amplifier; freque
BGA3012
NXP ↗ Semiconductors
151.27 KB
1ghz 12db gain wideband amplifier mmic.

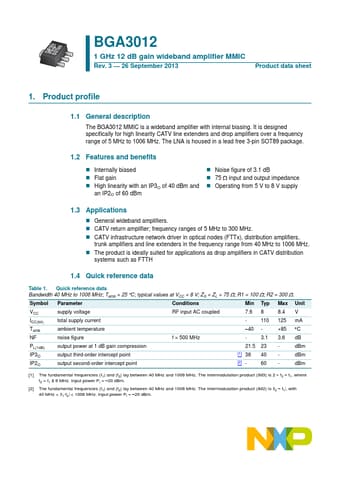

SO T8 9 BGA3012 1 GHz 12 dB gain wideband amplifier MMIC Rev. 3 26 September 2013 Product data sheet 1. Product profile 1.1 General descri.
