BGA318 Datasheet - Siemens Semiconductor Group

BGA318 Silicon Bipolar MMIC-Amplifier (Cascadable 50 W-gain block 16 dB typical gain at 1.0 GHz 12 dBm typical P-1dB at 1.0 GHz)

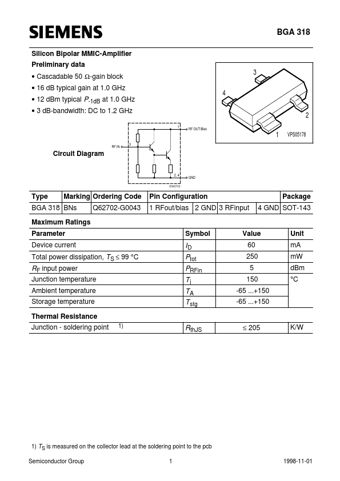

BGA 318 Silicon Bipolar MMIC-Amplifier Preliminary data Cascadable 50 Ω-gain block 16 dB typical gain at 1.0 GHz 12 dBm typical P-1dB at 1.0 GHz 3 dB-bandwidth: DC to 1.2 GHz 1 RF OUT/Bias 3 4 2 1 VPS05178 RF IN 3 Circuit Diagram 2, 4 EHA07312 GND Type Marking Ordering Code Q62702-G0043 Pin Configuration 1 RFout/bias 2 GND 3 RFinput Package 4 GND SOT-143 BGA 318 BNs Maximum Ratings Parameter Device current Symbol Value 60 250 5 150 -65 +150 -65.

BGA318_SiemensSemiconductorGroup.pdf

BGA318 Datasheet Preview — Preview of BGA318 PDF

Datasheet Details

Part number:

BGA318

Manufacturer:

Siemens Semiconductor Group

File Size:

20.51 KB

Description:

Silicon bipolar mmic-amplifier (cascadable 50 w-gain block 16 db typical gain at 1.0 ghz 12 dbm typical p-1db at 1.0 ghz).
