BGA3022 - 1.2GHz 18dB gain CATV amplifier

BGA3022 Description

+62 BGA3022 1.2 GHz 18 dB gain CATV amplifier Rev.2 * 25 February 2015 Product data sheet 1.Product profile 1.1 General .
The BGA3022 MMIC is a dual wideband amplifier with internal biasing.

BGA3022 Features

* Internally biased
* Frequency range of 40 MHz to 1200 MHz
* High linearity with an IP3O of 47 dBm and an IP2O of 85 dBm
* Operating from 5 V to 8 V supply
* High gain output 1dB compression point of 30 dBm
* 75  input and output impedance
* ICC(tot) can be controlled

BGA3022 Applications

* CATV infrastructure network medium power output stage in optical nodes (FTTx), distribution amplifiers, trunk amplifiers and line extenders 1.4 Quick reference data Table 1. Quick reference data Tamb = 25 C; typical values at VCC = 8 V; ZS = ZL = 75 ; input and output connected with 1:1 ba

📥 Download Datasheet

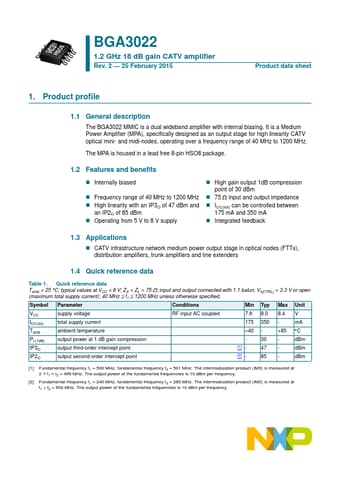

Preview of BGA3022 PDF
