BGA3018 - 1 GHz 18 dB gain wideband amplifier MMIC

BGA3018 Description

SOT89 BGA3018 1 GHz 18 dB gain wideband amplifier MMIC Rev.3 * 26 September 2013 Product data sheet 1.Product profile 1.1 General descri.
The BGA3018 MMIC is a wideband amplifier with internal biasing.

BGA3018 Features

* Internally biased
* Flat gain
* High linearity with an IP3O of 40 dBm and an IP2O of 60 dBm
* Noise figure of 2.1 dB
* 75  input and output impedance

BGA3018 Applications

* General wideband amplifiers.
* CATV return amplifier; frequency ranges of 5 MHz to 300 MHz.
* CATV infrastructure network driver in optical nodes (FTTx), distribution amplifiers, trunk amplifiers and line extenders in the frequency range from 40 MHz to 1006 MHz.
* The product is id

📥 Download Datasheet

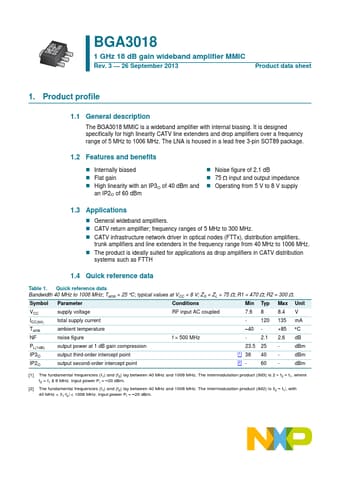

Preview of BGA3018 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BGA3018
Manufacturer
NXP ↗
File Size
132.36 KB
Datasheet
BGA3018-NXP.pdf
Description
1 GHz 18 dB gain wideband amplifier MMIC
