BGA3023, 1.2GHz 20dB gain CATV amplifier

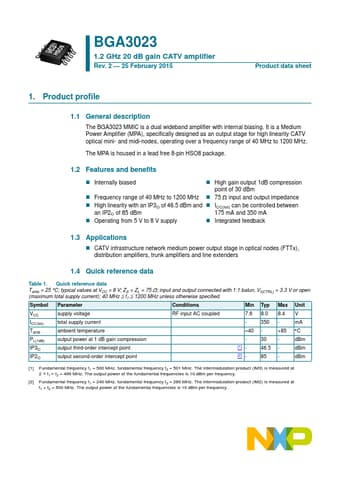

+62 BGA3023 1.2 GHz 20 dB gain CATV amplifier Rev.2 * 25 February 2015 Product data sheet 1.Product profile 1.1 General .
The BGA3023 MMIC is a dual wideband amplifier with internal biasing.

datasheet Preview Page 1 from Datasheet4u.com

BGA3023-NXP.pdf

BGA3023 Datasheet Preview — Preview of BGA3023 PDF

Datasheet Details

Part number:

BGA3023

Manufacturer:

NXP ↗

File Size:

198.51 KB

Description:

1.2GHz 20dB gain CATV amplifier

Features

* Internally biased
* High gain output 1dB compression point of 30 dBm
* Frequency range of 40 MHz to 1200 MHz
* 75  input and output impedance
* High linearity with an IP3O of 46.5 dBm and
* ICC(tot) can be controlled between an IP2O of 85 dBm 175 mA and 350 mA

Applications

* CATV infrastructure network medium power output stage in optical nodes (FTTx), distribution amplifiers, trunk amplifiers and line extenders 1.4 Quick reference data Table 1. Quick reference data Tamb = 25 C; typical values at VCC = 8 V; ZS = ZL = 75 ; input and output connected with 1:1 ba
