BGA3021 Datasheet, Amplifier, NXP

BGA3021 Features

  • Amplifier
  • Internally biased
  • Frequency range of 40 MHz to 1200 MHz
  • High linearity with an IP3O of 47 dBm and an IP2O of 85 dBm
  • Operating from 5 V to 8 V su

PDF File Details

Part number:

BGA3021

Manufacturer:

NXP ↗

File Size:

198.48kb

Download:

📄 Datasheet

Description:

1.2ghz 16db gain catv amplifier. The BGA3021 MMIC is a dual wideband amplifier with internal biasing. It is a Medium Power Amplifier (MPA), specifically designed as a

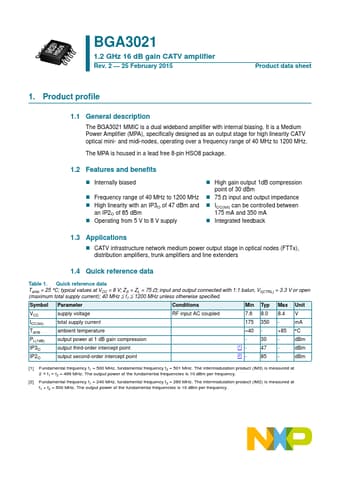

Datasheet Preview: BGA3021 📥 Download PDF (198.48kb)
Page 2 of BGA3021 Page 3 of BGA3021

BGA3021 Application

  • Applications
  • CATV infrastructure network medium power output stage in optical nodes (FTTx), distribution amplifiers, trunk amplifiers and
