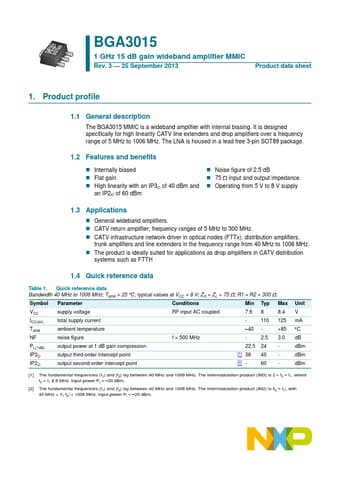

BGA3015 Datasheet, Mmic, NXP

BGA3015 Features

• Mmic
• Internally biased
• Flat gain
• High linearity with an IP3O of 40 dBm and an IP2O of 60 dBm
• Noise figure of 2.5 dB
• 75  input and output

PDF File Details

Part number:

BGA3015

Manufacturer:

NXP ↗

File Size:

132.08kb

Download:

📄 Datasheet

Description:

1 ghz 15 db gain wideband amplifier mmic. The BGA3015 MMIC is a wideband amplifier with internal biasing. It is designed specifically for high linearity CATV line extenders an

BGA3015 Application

• Applications
• General wideband amplifiers.
• CATV return amplifier; frequency ranges of 5 MHz to 300 MHz.
• CATV infrastruc
