IP4281CZ10

ESD protection

IP4281CZ10 Features

* I Pb-free, RoHS compliant and free of Halogen and Antimony (dark green compliant) I ESD protection for HDMI and other LVDS data lines I All TMDS lines with integrated rail-to-rail clamping diodes for downstream ESD protection of ±8 kV according to IEC61000-4-2, level 4 I Matched 0.5 mm trace spacing

IP4281CZ10 General Description

The IP4281CZ10 is designed for HDMI interface protection. The device includes high-level ElectroStatic Discharge (ESD) protection diodes for the TMDS signal lines. All TMDS intra-pairs are protected by a special diode configuration offering a low line capacitance of only 0.7 pF. These diodes provide .

IP4281CZ10 Datasheet (84.00 KB)

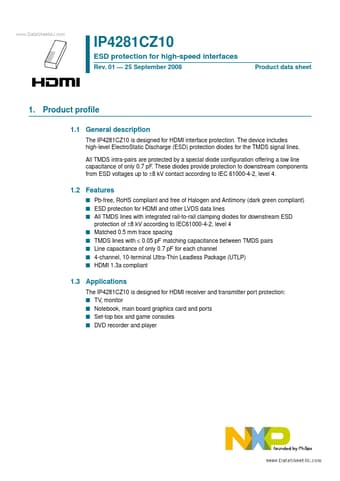

Preview of IP4281CZ10 PDF

Datasheet Details

Part number:

IP4281CZ10

Manufacturer:

NXP ↗ Semiconductors

File Size:

84.00 KB

Description:

Esd protection.
www.DataSheet4U.com IP4281CZ10 ESD protection for high-speed interfaces Rev. 01 25 September 2008 Product data sheet 1. Product profile 1.1.
