IP4283CZ10

ESD protection

IP4283CZ10 Features

* System ESD protection for HDMI, DisplayPort, eSATA and LVDS

* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 8 kV according to IEC 61000-4-2, level 4

* Matched 0.5 mm trace spacing

* Signal lines with  0.05 pF matching capacitance b

IP4283CZ10 General Description

The devices are designed to protect high-speed interfaces such as High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low-Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD). The devices include four .

IP4283CZ10 Datasheet (563.21 KB)

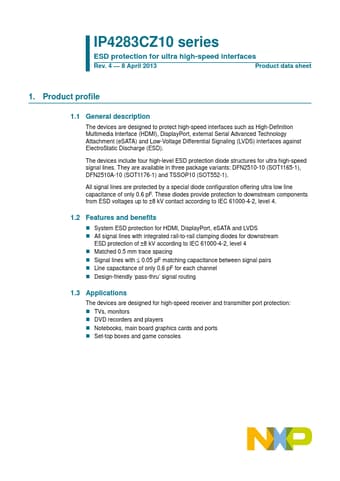

Preview of IP4283CZ10 PDF

Datasheet Details

Part number:

IP4283CZ10

Manufacturer:

NXP ↗ Semiconductors

File Size:

563.21 KB

Description:

Esd protection.
IP4283CZ10 series ESD protection for ultra high-speed interfaces Rev. 4 8 April 2013 Product data sheet 1. Product profile 1.1 General d.
