IP4284CZ10-TB - ESD protection

IP4284CZ10-TB Description

IP4284CZ10-TB; IP4284CZ10-TT ESD protection for ultra high-speed interfaces Rev.02 * 1 April 2010 Product data sheet 1.Product profile 1.1 .
The devices are designed to protect high-speed interfaces such as High-Definition Multimedia Interface (HDMI), DisplayPort, SuperSpeed USB, external S.

IP4284CZ10-TB Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)
* System ESD protection for USB 2.0 and USB SuperSpeed 3.0, HDMI 1.3 and HDMI 1.4, DisplayPort, eSATA and LVDS
* All signal lines with integrated rail-to-ra

IP4284CZ10-TB Applications

* The devices are designed for high-speed receiver and transmitter port protection:
* TVs, monitors
* DVD recorders and players
* Notebooks, mother boards, graphic cards and ports
* Set-top boxes and game consoles NXP Semiconductors IP4284CZ10-TB/TT ESD protection for

📥 Download Datasheet

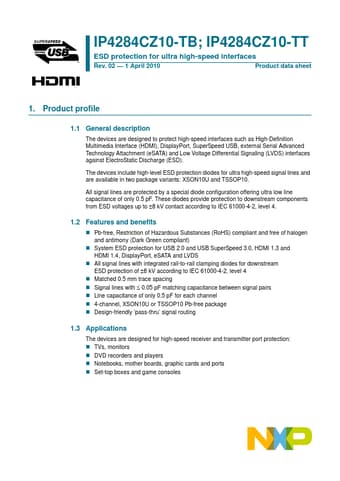

Preview of IP4284CZ10-TB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP4284CZ10-TB
Manufacturer
NXP ↗
File Size
151.81 KB
Datasheet
IP4284CZ10-TB-NXP.pdf
Description
ESD protection
