IP4234CZ6 Datasheet, Protection, nexperia

IP4234CZ6 Features

• Protection
• Pb-free and RoHS compliant
• Simple, direct signal routing provides for high speed signal integrity
• ESD protection compliant to IEC 61000-4-2 level 4, ±8 kV

PDF File Details

Part number:

IP4234CZ6

Manufacturer:

nexperia ↗

File Size:

176.67kb

Download:

📄 Datasheet

Description:

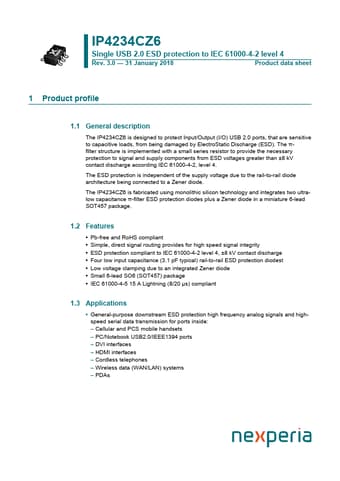

Single usb 2.0 esd protection. The IP4234CZ6 is designed to protect Input/Output (I/O) USB 2.0 ports, that are sensitive to capacitive loads, from being damaged by

IP4234CZ6 Application

• Applications
• General-purpose downstream ESD protection high frequency analog signals and highspeed serial data transmission for ports insi
