74AVC16245, 16-bit transceiver

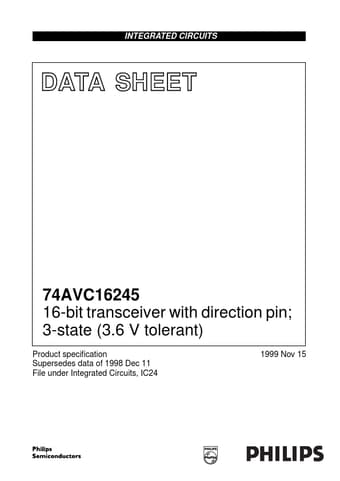

INTEGRATED CIRCUITS DATA SHEET 74AVC16245 16-bit transceiver with direction pin; 3-state (3.6 V tolerant) Product speciﬁcation Supersedes data of 19.
74AVC16245 The 74AVC16245 is a 16-bit transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions.

datasheet Preview Page 1 from Datasheet4u.com

74AVC16245_PhilipsSemiconductors.pdf

74AVC16245 Datasheet Preview — Preview of 74AVC16245 PDF

Datasheet Details

Part number:

74AVC16245

Manufacturer:

NXP ↗

File Size:

87.54 KB

Description:

16-bit transceiver

Features

* Wide supply voltage range from 1.2 to 3.6 V
* Complies with JEDEC standard no. 8-1A/5/7
* CMOS low power consumption
* Input/output tolerant up to 3.6 V
* Dynamic Controlled Output (DCO) circuit dynamically changes output impedance, resulting in noise reduct

Applications

* VI VO Tamb tr, tf DC input voltage DC output voltage operating ambient temperature input rise and fall times 3-state HIGH or LOW state in free air VCC = 1.65 to 2.3 V VCC = 2.3 to 3.0 V VCC = 3.0 to 3.6 V 1.2 0 0 0
* 40 0 0 0 74AVC16245 MAX. 1.95 2.7 3.6 3.6 3.6 3.6 VCC +85 30 20 10 UNIT V
