74AVC16835

18-bit registered driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part NXP Semiconductors 74AVC16835ADGV,118 IC BUF NON-INVERT 3.6V 56TSSOP DigiKey 0 0
$0

74AVC16835 Datasheet (89.42 KB)

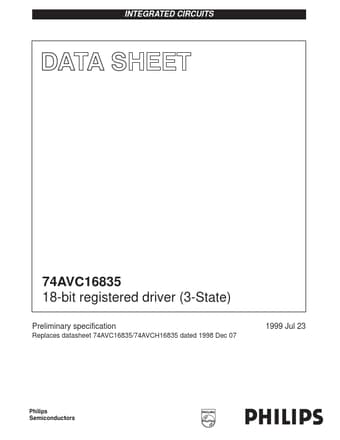

Preview of 74AVC16835 PDF Datasheet

Datasheet Details

Part number:

74AVC16835

Manufacturer:

NXP ↗

File Size:

89.42 KB

Description:

18-bit registered driver.
INTEGRATED CIRCUITS 74AVC16835 18-bit registered driver (3-State) Preliminary specification Replaces datasheet 74AVC16835/74AVCH16835 dated 1998 Dec .

74AVC16835 Features

* Wide supply voltage range of 1.2 V to 3.6 V

* Complies with JEDEC standard no. 8-1A/5/7.

* CMOS low power consumption

* Input/output tolerant up to 3.6 V

* DCO (Dynamic Controlled Output) circuit dynamically changes output impedance, resulting in noise redu

74AVC16835 General Description

The 74AVC16835 is a 18-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP). This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption. To ensure the high-impedance state during power up .
