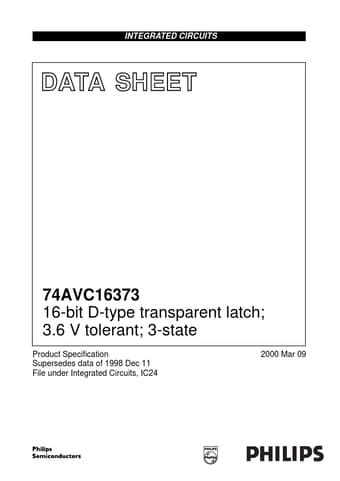

74AVC16373 Datasheet, Latch, NXP

74AVC16373 Features

• Latch
• Wide supply voltage range from 1.2 to 3.6 V
• Complies with JEDEC standard no. 8-1A/5/7
• CMOS low power consumption
• Input/output tolerant up to 3.6

PDF File Details

Part number:

74AVC16373

Manufacturer:

NXP ↗

File Size:

87.23kb

Download:

📄 Datasheet

Description:

16-bit d-type transparent latch. 74AVC16373 The 74AVC16373 is a 16-bit D-type transparent latch featuring separate D-type inputs for each latch, and 3-state outputs

74AVC16373 Application

• Applications One Latch Enable (LE) input and one Output Enable (OE) input are provided per 8-bit section. The 74AVC16373 consist of two sections of
