74AVC16835A Datasheet - nexperia

18-bit registered driver

74AVC16835A Features

* Wide supply voltage range from 1.2 V to 3.6 V

* Complies with JEDEC standards:

* JESD8-7 (1.2 V to 1.95 V)

* JESD8-5 (1.8 V to 2.7 V)

* JESD8-1A (2.7 V to 3.6 V)

* CMOS low power consumption

* Input/output tolerant up to 3.6 V

* Dynam

74AVC16835A General Description

The 74AVC16835A is an 18-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP). This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption. To ensure the high-impedance state during power u.

74AVC16835A Datasheet (223.57 KB)

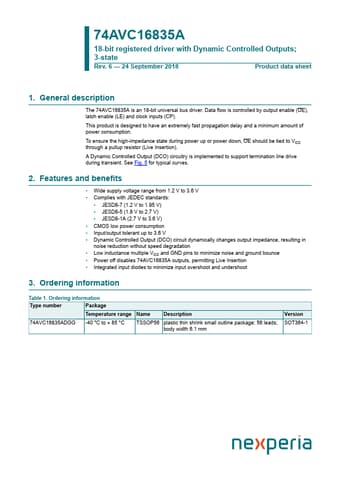

74AVC16835A Datasheet Preview — Preview of 74AVC16835A PDF

Datasheet Details

Part number:

74AVC16835A

Manufacturer:

nexperia ↗

File Size:

223.57 KB

Description:

18-bit registered driver.
74AVC16835A 18-bit registered driver with Dynamic Controlled Outputs; 3-state Rev. 6 24 September 2018 Product data sheet 1. General de.
