74AVC16836A Datasheet - NXP

20-bit registered driver

74AVC16836A Features

* Wide supply voltage range of 1.2 V to 3.6 V

* Complies with JEDEC standard no. 8-1A/5/7.

* CMOS low power consumption

* Input/output tolerant up to 3.6 V

* DCO (Dynamic Controlled Output) circuit dynamically changes output impedance, resulting in noise redu

74AVC16836A General Description

The 74AVC16836A is a 20-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP). This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption. To ensure the high-impedance state during power up.

74AVC16836A Datasheet (144.83 KB)

74AVC16836A Datasheet Preview — Preview of 74AVC16836A PDF

Datasheet Details

Part number:

74AVC16836A

Manufacturer:

NXP ↗

File Size:

144.83 KB

Description:

20-bit registered driver.

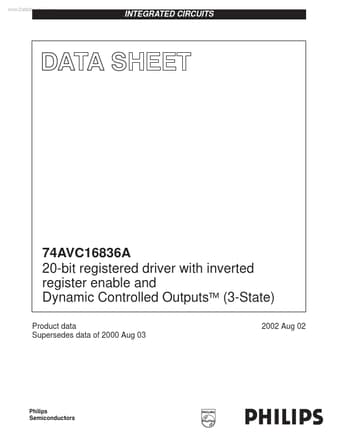

www.DataSheet4U.com INTEGRATED CIRCUITS 74AVC16836A 20-bit registered driver with inverted register enable and Dynamic Controlled Outputs™ (3-State).
