74AVC16834A Datasheet - nexperia

18-bit registered driver

74AVC16834A Features

* Wide supply voltage range from 1.2 V to 3.6 V

* Complies with JEDEC standards:

* JESD8-7 (1.2 V to 1.95 V)

* JESD8-5 (1.8 V to 2.7 V)

* JESD8-1A (2.7 V to 3.6 V)

* CMOS low power consumption

* Input/output tolerant up to 3.6 V

* Dynam

74AVC16834A General Description

The 74AVC16834A is an 18-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP). This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption. To ensure the high-impedance state during power u.

74AVC16834A Datasheet (223.25 KB)

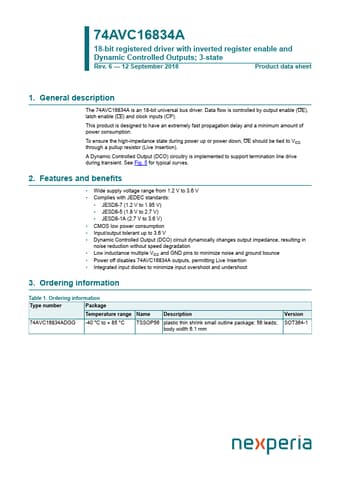

74AVC16834A Datasheet Preview — Preview of 74AVC16834A PDF

Datasheet Details

Part number:

74AVC16834A

Manufacturer:

nexperia ↗

File Size:

223.25 KB

Description:

18-bit registered driver.
74AVC16834A 18-bit registered driver with inverted register enable and Dynamic Controlled Outputs; 3-state Rev. 6 12 September 2018 Prod.
