74AVC16245-Q100

16-bit transceiver

74AVC16245-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 3)

* Specified from 40 C to +85 C

* Wide supply voltage range from 1.2 V to 3.6 V

* Complies with JEDEC standards:

* JESD8-7 (1.2 V to 1.95 V)

* JESD8-5 (1.8 V to 2.7 V)

* JESD8-1A (2.7 V to 3.6 V)

74AVC16245-Q100 Datasheet (754.13 KB)

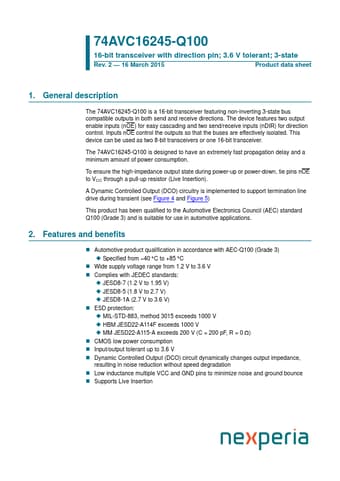

Preview of 74AVC16245-Q100 PDF

Datasheet Details

Part number:

74AVC16245-Q100

Manufacturer:

nexperia ↗

File Size:

754.13 KB

Description:

16-bit transceiver.
74AVC16245-Q100 16-bit transceiver with direction pin; 3.6 V tolerant; 3-state Rev. 2

* 16 March 2015 Product data sheet 1. General descri.
