BLF278

VHF push-pull power MOS transistor

BLF278 Features

* High power gain

* Easy power control

* Good thermal stability

* Gold metallization ensures excellent reliability. APPLICATIONS

* Broadcast transmitters in the VHF frequency range. DESCRIPTION Dual push-pull silicon N-channel enhancement mode vertical D-MOS t

BLF278 General Description

Dual push-pull silicon N-channel enhancement mode vertical D-MOS transistor encapsulated in a 4-lead, SOT262A1 balanced flange package with two ceramic caps. The mounting flange provides the common source connection for the transistors. CAUTION The device is supplied in an antistatic package. The ga.

BLF278 Datasheet (179.20 KB)

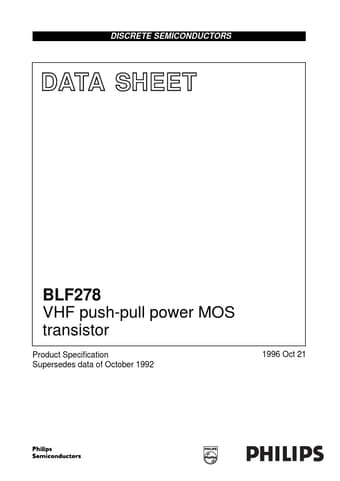

Preview of BLF278 PDF

Datasheet Details

Part number:

BLF278

Manufacturer:

NXP ↗

File Size:

179.20 KB

Description:

Vhf push-pull power mos transistor.
DISCRETE SEMICONDUCTORS DATA SHEET BLF278 VHF push-pull power MOS transistor Product Specification Supersedes data of October 1992 1996 Oct 21 Phili.
