BUK553-100A PowerMOS transistor

BUK553-100A Description

Philips Semiconductors Product Specification PowerMOS transistor Logic level FET GENERAL .
N-channel enhancement mode logic level field-effect power transistor in a plastic envelope.

BUK553-100A Applications

* BUK553-100A/B QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER BUK553 Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance; VGS = 5 V MAX. -100A 100 13 75 175 0.18 MAX. -100B 100 12 75 175 0.22 UNIT V A W ˚C Ω PINNING -

📥 Download Datasheet

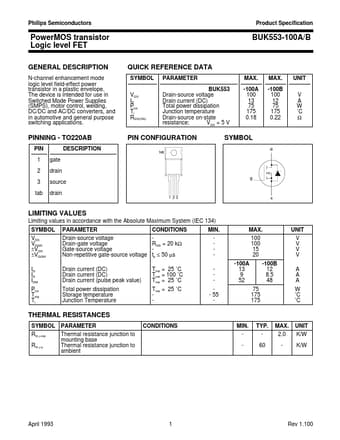

Preview of BUK553-100A PDF
datasheet Preview Page 2 datasheet Preview Page 3
