IP4264CZ8-40-TTL

(IP4264CZ8-10/-20/-40-TTL) Integrated (U)SIM card passive filter array

IP4264CZ8-40-TTL Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)

* 3-channel SIM card interface integrated RC-filter array and SIM voltage ESD protection

* 2 USIM (USB 1.1) compliant ESD protection diodes with 20 pF channel capacitan

IP4264CZ8-40-TTL General Description

The IP4264CZ8-10-TTL, IP4264CZ8-20-TTL and IP4264CZ8-40-TTL are 3-channel RC low-pass filter arrays. They are designed to provide filtering of undesired RF signals in the 800 MHz-to-3000 MHz frequency band. They incorporate diodes to provide protection to downstream components from ElectroStatic Dis.

IP4264CZ8-40-TTL Datasheet (200.22 KB)

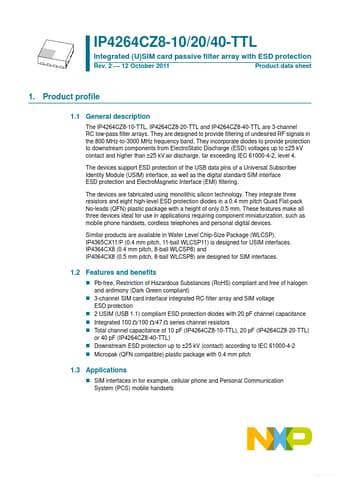

Preview of IP4264CZ8-40-TTL PDF

Datasheet Details

Part number:

IP4264CZ8-40-TTL

Manufacturer:

NXP ↗

File Size:

200.22 KB

Description:

(ip4264cz8-10/-20/-40-ttl) integrated (u)sim card passive filter array.
IP4264CZ8-10/20/40-TTL Integrated (U)SIM card passive filter array with ESD protection Rev. 2 12 October 2011 Product data sheet 1. Product.
