ISP1507C

ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver

ISP1507C Features

* I Fully complies with: N Universal Serial Bus Specification Rev. 2.0 N UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1 I Interfaces to host and peripheral cores; optimized for stand-alone and embedded host applications with an external VBUS supply; stand-alone peripheral cores, and Session Reque

ISP1507C General Description

The ISP1507 is a Universal Serial Bus (USB) high-speed host and peripheral transceiver that is fully compliant with Universal Serial Bus Specification Rev. 2.0 and UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1. The ISP1507 can transmit and receive USB data at high-speed (480 Mbit/s), full-spee.

ISP1507C Datasheet (428.87 KB)

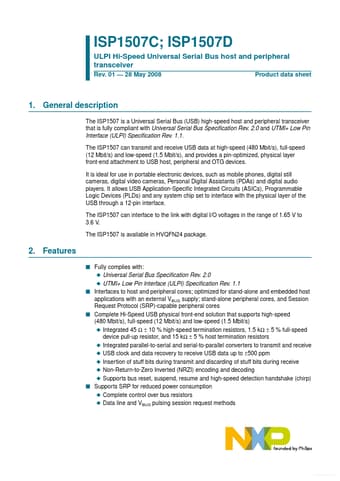

Preview of ISP1507C PDF

Datasheet Details

Part number:

ISP1507C

Manufacturer:

NXP ↗

File Size:

428.87 KB

Description:

Ulpi hi-speed universal serial bus host and peripheral transceiver.
ISP1507C; ISP1507D ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver Rev. 01

* 28 May 2008 Product data sheet 1. General des.
