ADC16471 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters

Datasheet Summary

Description

The ADC16071 ADC16471 are 16-bit delta-sigma analogto-digital converters using 64 c oversampling at 12 288 MHz A 5th-order comb filter and a 246 tap FIR decimation filter are used to achieve an output data rate of up to 192 kHz The combination of oversampling and internal digital filtering greatly r

Features

  • Y Y Y Y Y Y Y Y Voltage reference (ADC16471 only) Fourth-order modulator 64 c oversampling with a 12 288 MHz sample rate Adjustable output data rate from 7 kHz to 192 kHz Linear-phase digital anti-aliasing filter 0 005 dB passband ripple 90 dB stopband rejection Single a 5V supply Power-down mode Serial data interface compatible with popular DSP devices.

📥 Download Datasheet

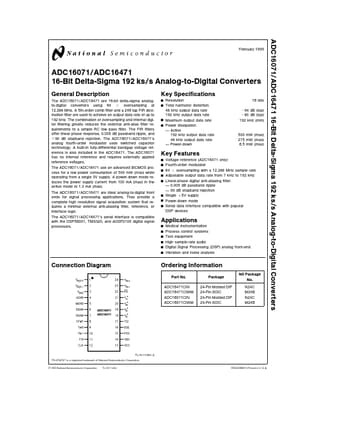

Datasheet preview – ADC16471

Datasheet Details

Part number ADC16471
Manufacturer National Semiconductor
File Size 355.09 KB
Description 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters
Datasheet download datasheet ADC16471 Datasheet
Additional preview pages of the ADC16471 datasheet.

📁 Similar Datasheet

  • ADC1610S - Single 16-bit ADC (NXP Semiconductors)
  • ADC1613D - Dual 16-bit ADC (NXP Semiconductors)
  • ADC1613S - Single 16-bit ADC (NXP Semiconductors)
  • ADC161S626 - MicroPower ADC (Texas Instruments)
  • ADC16DV160 - 160 MSPS Analog-to-Digital Converter (Texas Instruments)
  • ADC16DX370 - Dual 16-Bit 370MSPS ADC (Texas Instruments)
  • ADC16V130 - 130MSPS A/D Converter (Texas Instruments)
  • ADC100 - Single & Dual Output DC/DC Converters (MPS Industries)
  • ADC1000 - (ADC1000 - ADC4050) Custom Multi Element Silicon Photodiodes (Advanced Detector)
  • ADC1002S020 - Single 10 bits ADC (NXP Semiconductors)
Other Datasheets by National Semiconductor
  • ADC16061 - Self-Calibrating 16-Bit/ 2.5 MSPS/ 390 mW A/D Converter
  • ADC16071 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters
  • ADC161S626 - MicroPower ADC
  • ADC16DV160 - 160 MSPS Analog-to-Digital Converter
  • ADC16V130 - 130 MSPS A/D Converter
  • ADC1001 - 10-Bit uP Compatible A/D Converter
  • ADC10030 - 10-Bit/ 30 MSPS/ 125 mW A/D Converter
  • ADC10040 - 10-Bit/ 40 MSPS/ 3V/ 55.5 mW A/D Converter

Full PDF Text Transcription

Click to expand full text
ADC16071 ADC16471 16-Bit Delta-Sigma 192 ks s Analog-to-Digital Converters February 1995 ADC16071 ADC16471 16-Bit Delta-Sigma 192 ks s Analog-to-Digital Converters General Description The ADC16071 ADC16471 are 16-bit delta-sigma analogto-digital converters using 64 c oversampling at 12 288 MHz A 5th-order comb filter and a 246 tap FIR decimation filter are used to achieve an output data rate of up to 192 kHz The combination of oversampling and internal digital filtering greatly reduces the external anti-alias filter requirements to a simple RC low pass filter The FIR filters offer linear phase response 0 005 dB passband ripple and t 90 dB stopband rejection The ADC16071 ADC16471’s analog fourth-order modulator uses switched capacitor technology A built-in fully-differential bandgap volta
