ADC16DX370 - Dual 16-Bit 370MSPS ADC

Datasheet Summary

Description

The ADC16DX370 device is a monolithic dualchannel high performance analog-to-digital converter capable of converting analog input signals into 16-bit digital words with a sampling rate of 370 MSPS.

Features

  • 1 Resolution: 16-Bit.
  • Conversion Rate: 370 MSPS.
  • 1.7 VP-P Input Full Scale Range.
  • Performance:.
  • Input: 150 MHz,.
  • 3 dBFS.
  • SNR: 69.6 dBFS.
  • Noise Spectral Density:.
  • 152.3 dBFS/Hz.
  • SFDR: 88 dBFS.
  • Non-HD2 and Non-HD3 SPUR:.
  • 90 dBFS.
  • Power Dissipation: 800 mW/channel.
  • Buffered Analog Inputs.
  • On-Chip Precision Reference Without External Bypassing.
  • Input Sampling C.

📥 Download Datasheet

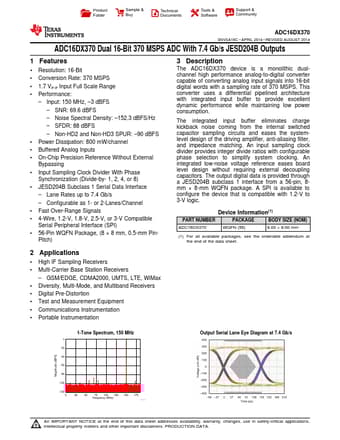

Datasheet preview – ADC16DX370
