ADC1613S

Single 16-bit ADC

NXP Semiconductors

ADC1613S Features

* SNR, 72.3 dBFS; SFDR, 88 dBc

* Sample rates up to 125 Msps

* Single channel, 16-bit pipelined ADC core

* 3 V, 1.8 V power supplies

* Flexible input voltage range: 1 V (p-p) to 2 V (p-p)

* Serial output

* Power-down mode and Sleep mode

* Pin compatible with ADC1413S

ADC1613S General Description

The ADC1613S is a single channel 16-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performance and low power at sample rates up to 125 Msps. Pipelined architecture and output error correction ensure the ADC1613S is accurate enough to guarantee zero missing codes over the entire ope.

ADC1613S Datasheet (320.29 KB)

ADC1613S Datasheet Preview — Preview of ADC1613S PDF

Datasheet Details

Part number:

ADC1613S

Manufacturer:

NXP ↗ Semiconductors

File Size:

320.29 KB

Description:

Single 16-bit adc.

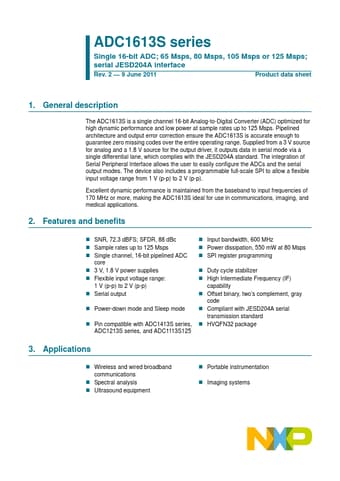

ADC1613S series Single 16-bit ADC; 65 Msps, 80 Msps, 105 Msps or 125 Msps; serial JESD204A interface Rev. 2

* 9 June 2011 Product data shee.
