ADC16DV160 - 160 MSPS Analog-to-Digital Converter

Texas Instruments

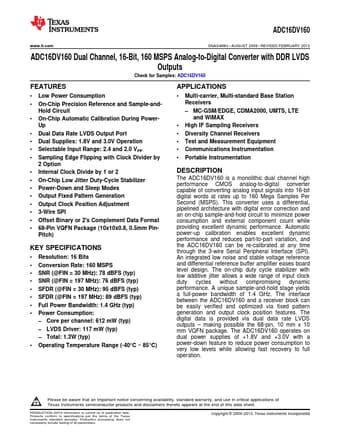

ADC16DV160 Datasheet Preview — Preview of ADC16DV160 PDF

Datasheet Details

Part number	ADC16DV160
Manufacturer	Texas Instruments ↗
File Size	0.97 MB
Description	160 MSPS Analog-to-Digital Converter
Datasheet	ADC16DV160-etcTI.pdf

ADC16DV160 Product details

Description

The ADC16DV160 is a monolithic dual channel high performance CMOS analog-to-digital converter capable of converting analog input signals into 16-bit digital words at rates up to 160 Mega Samples Per Second (MSPS).

Features

1.
Low Power Consumption.
On-Chip Precision Reference and Sample-and- Hold Circuit.
On-Chip Automatic Calibration During Power- Up.
Dual Data Rate LVDS Output Port.
Dual Supplies: 1.8V and 3.0V Operation.
Selectable Input Range: 2.4 and 2.0 VPP.
Sampling Edge Flipping with Clock Divider by 2 Option.
Internal Clock Divide by 1 or 2.
On-Chip Low Jitter Duty-Cycle Stabilizer.
Power-Down and Sleep Modes.
