ADC1610S - Single 16-bit ADC

Datasheet Summary

Description

The ADC1610S is a single-channel 16-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power consumption at sample rates up to 125 Msps.

Features

SNR, 72.5 dBFS; SFDR, 88 dBc Sample rate up to 125 Msps 16-bit pipelined ADC core Clock input divider by 2 for less jitter contribution.
Single 3 V supply.
Flexible input voltage range: 1 V to 2 V (peak-to-peak).
CMOS or LVDS DDR digital outputs.
Power-down and Sleep modes.
Input bandwidth, 600 MHz Power dissipation, 430 mW at 80 Msps Serial Peripheral Interface (SPI) Duty cycle st.

Datasheet Details

Part number	ADC1610S
Manufacturer	NXP Semiconductors
File Size	329.65 KB
Description	Single 16-bit ADC
Datasheet	ADC1610S Datasheet

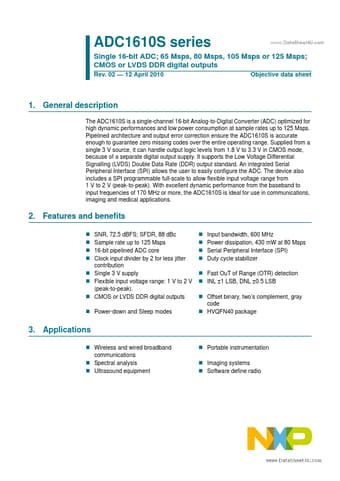

Additional preview pages of the ADC1610S datasheet.

📁 Similar Datasheet

ADC161S626 - MicroPower ADC (Texas Instruments)

ADC161S626 - MicroPower ADC (National Semiconductor)

ADC16061 - Self-Calibrating 16-Bit/ 2.5 MSPS/ 390 mW A/D Converter (National Semiconductor)

ADC16071 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters (National Semiconductor)

ADC16471 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters (National Semiconductor)

ADC16DV160 - 160 MSPS Analog-to-Digital Converter (Texas Instruments)

ADC16DV160 - 160 MSPS Analog-to-Digital Converter (National Semiconductor)

ADC16DX370 - Dual 16-Bit 370MSPS ADC (Texas Instruments)

ADC16V130 - 130MSPS A/D Converter (Texas Instruments)

ADC16V130 - 130 MSPS A/D Converter (National Semiconductor)

Full PDF Text Transcription

Click to expand full text

ADC1610S series Rev. 02 — 12 April 2010 www.DataSheet4U.com Single 16-bit ADC; 65 Msps, 80 Msps, 105 Msps or 125 Msps; CMOS or LVDS DDR digital outputs Objective data sheet 1. General description The ADC1610S is a single-channel 16-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power consumption at sample rates up to 125 Msps. Pipelined architecture and output error correction ensure the ADC1610S is accurate enough to guarantee zero missing codes over the entire operating range. Supplied from a single 3 V source, it can handle output logic levels from 1.8 V to 3.3 V in CMOS mode, because of a separate digital output supply. It supports the Low Voltage Differential Signalling (LVDS) Double Data Rate (DDR) output standard.
