ADC161S626 - MicroPower ADC

Datasheet Summary

Description

The ADC161S626 is a 16-bit successiveapproximation register (SAR) Analog-to-Digital converter (ADC) with a maximum sampling rate of 250 kSPS.

40°C to +85°C.

Features

  • 1 16-bit Resolution With No Missing Codes.
  • Ensured Performance from 50 to 250 kSPS.
  • ±0.003% Signal Span Accuracy.
  • Separate Digital Input/Output Supply.
  • True Differential Input.
  • External Voltage Reference Range of 0.5 V to VA.
  • Zero-Power Track Mode with 0-µsec Wake-up Delay.
  • Wide Input Common-mode Voltage Range of 0 V to VA.
  • SPI/QSPI™/.

📥 Download Datasheet

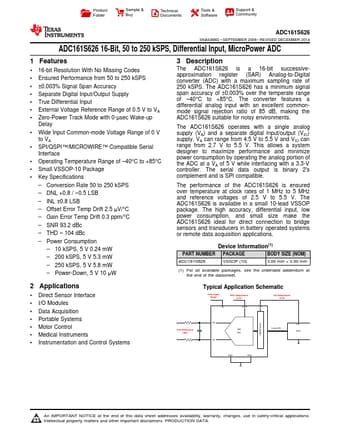

Datasheet preview – ADC161S626

Datasheet Details

Part number ADC161S626
Manufacturer Texas Instruments
File Size 1.07 MB
Description MicroPower ADC
Datasheet download datasheet ADC161S626 Datasheet
Additional preview pages of the ADC161S626 datasheet.

📁 Similar Datasheet

  • ADC161S626 - MicroPower ADC (National Semiconductor)
  • ADC1610S - Single 16-bit ADC (NXP Semiconductors)
  • ADC1613D - Dual 16-bit ADC (NXP Semiconductors)
  • ADC1613S - Single 16-bit ADC (NXP Semiconductors)
  • ADC16061 - Self-Calibrating 16-Bit/ 2.5 MSPS/ 390 mW A/D Converter (National Semiconductor)
  • ADC16071 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters (National Semiconductor)
  • ADC16471 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters (National Semiconductor)
  • ADC16DV160 - 160 MSPS Analog-to-Digital Converter (National Semiconductor)
  • ADC16V130 - 130 MSPS A/D Converter (National Semiconductor)
  • ADC100 - Single & Dual Output DC/DC Converters (MPS Industries)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ADC161S626 SNAS468D – SEPTEMBER 2008 – REVISED DECEMBER 2014 ADC161S626 16-Bit, 50 to 250 kSPS, Differential Input, MicroPower ADC 1 Features •1 16-bit Resolution With No Missing Codes • Ensured Performance from 50 to 250 kSPS • ±0.003% Signal Span Accuracy • Separate Digital Input/Output Supply • True Differential Input • External Voltage Reference Range of 0.5 V to VA • Zero-Power Track Mode with 0-µsec Wake-up Delay • Wide Input Common-mode Voltage Range of 0 V to VA • SPI/QSPI™/MICROWIRE™ Compatible Serial Interface • Operating Temperature Range of −40°C to +85°C • Small VSSOP-10 Package • Key Specifications – Conversion Rate 50 to 250 kSPS – DNL +0.8 / −0.5 LSB – INL ±0.
