ADC1613D - Dual 16-bit ADC

Datasheet Summary

Description

The ADC1613D is a dual-channel 16-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power at sample rates up to 125 Msps.

Features

  • SNR, 72.5 dBFS; SFDR, 88 dBc.
  • Sample rate up to 125 Msps.
  • Clock input divider by 2 for less jitter contribution.
  • 3 V, 1.8 V single supplies.
  • Flexible input voltage range: 1 V to 2 V (peak-to-peak).
  • Two configurable serial outputs.
  • INL ± 1 LSB; DNL ± 0.5 LSB.
  • Pin compatible with the ADC1213D series.
  • HVQFN56 package.
  • Input bandwidth, 600 MHz.
  • Power dissipation, 995 mW at 80 Msps.
  • SPI regist.

📥 Download Datasheet

Datasheet preview – ADC1613D

Datasheet Details

Part number ADC1613D
Manufacturer NXP Semiconductors
File Size 436.90 KB
Description Dual 16-bit ADC
Datasheet download datasheet ADC1613D Datasheet
Additional preview pages of the ADC1613D datasheet.

📁 Similar Datasheet

  • ADC161S626 - MicroPower ADC (Texas Instruments)
  • ADC161S626 - MicroPower ADC (National Semiconductor)
  • ADC16061 - Self-Calibrating 16-Bit/ 2.5 MSPS/ 390 mW A/D Converter (National Semiconductor)
  • ADC16071 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters (National Semiconductor)
  • ADC16471 - 16-Bit Delta-Sigma 192 ks/s Analog-to-Digital Converters (National Semiconductor)
  • ADC16DV160 - 160 MSPS Analog-to-Digital Converter (Texas Instruments)
  • ADC16DV160 - 160 MSPS Analog-to-Digital Converter (National Semiconductor)
  • ADC16DX370 - Dual 16-Bit 370MSPS ADC (Texas Instruments)
  • ADC16V130 - 130MSPS A/D Converter (Texas Instruments)
  • ADC16V130 - 130 MSPS A/D Converter (National Semiconductor)
Other Datasheets by NXP Semiconductors

Full PDF Text Transcription

Click to expand full text

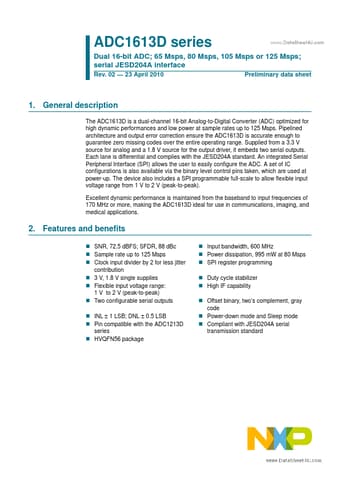

ADC1613D series Rev. 02 — 23 April 2010 www.DataSheet4U.com Dual 16-bit ADC; 65 Msps, 80 Msps, 105 Msps or 125 Msps; serial JESD204A interface Preliminary data sheet 1. General description The ADC1613D is a dual-channel 16-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power at sample rates up to 125 Msps. Pipelined architecture and output error correction ensure the ADC1613D is accurate enough to guarantee zero missing codes over the entire operating range. Supplied from a 3.3 V source for analog and a 1.8 V source for the output driver, it embeds two serial outputs. Each lane is differential and complies with the JESD204A standard. An integrated Serial Peripheral Interface (SPI) allows the user to easily configure the ADC.
