DP8402A Datasheet - National Semiconductor

DP8402A Error Detection and Correction Circuits

The DP8402A DP8403 DP8404 and DP8405 devices are 32-bit parallel error detection and correction circuits (EDACs) in 52-pin DP8402A and DP8403 or 48-pin DP8404 and DP8405 600-mil packages The EDACs use a modified Hamming code to generate a 7-bit check word from a 32-bit data word This check word is s.

DP8402A Features

* Y Detects and corrects single-bit errors Y Detects and flags double-bit errors Y Built-in diagnostic capability Y Fast write and read cycle processing times Y Byte-write capability DP8402A and DP8403 Y Fully pin and function compatible with TI’s SN74ALS632A thru SN74ALS635 series System Environment

DP8402A Datasheet (495.69 KB)

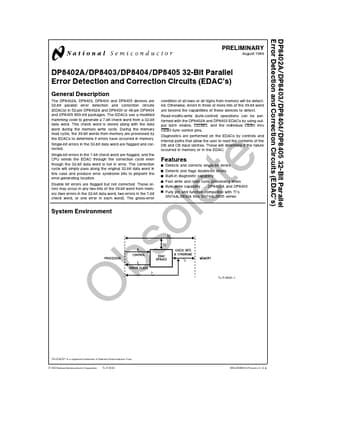

DP8402A Datasheet Preview — Preview of DP8402A PDF

Datasheet Details

Part number:

DP8402A

Manufacturer:

National Semiconductor

File Size:

495.69 KB

Description:

Error detection and correction circuits.
