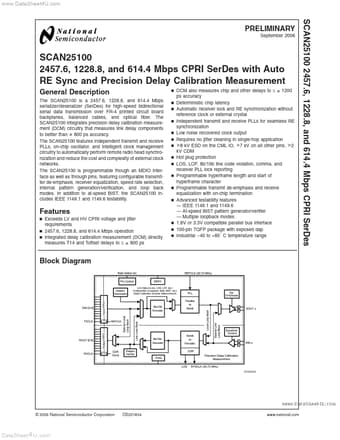

SCAN25100 CPRI SerDes

The SCAN25100 is a 2457.6, 1228.8, and 614.4 Mbps serializer/deseralizer (SerDes) for high-speed bidirectional serial data transmission over FR-4 printed circuit board backplanes, balanced cables, and optical fiber. The SCAN25100 integrates precision delay calibration measurement (DCM) circuitry tha.

SCAN25100 Features

* independent transmit and receive PLLs, on-chip oscillator, and intelligent clock management circuitry to automatically perform remote radio head synchronization and reduce the cost and complexity of external clock networks. The SCAN25100 is programmable though an MDIO interface as well as through pi
