FQH8N100C Datasheet - ON Semiconductor

N-Channel MOSFET

FQH8N100C Features

* 8 A, 1000 V, RDS(on) = 1.45ĂW (Max.) @ VGS = 10 V

* Low Gate Charge (Typ. 53 nC)

* Low Crss (Typ. 16 pF)

* Fast Switching

* 100% Avalanche Tested

* Improved dv/dt Capability

* This Device is Pb

* Free and is RoHS Compliant www.onsemi.c

FQH8N100C General Description

This N *Channel enhancement mode power MOSFET is produced using ON Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on *state resistance, and to provide superior switching performance and high avalanch.

FQH8N100C Datasheet (420.08 KB)

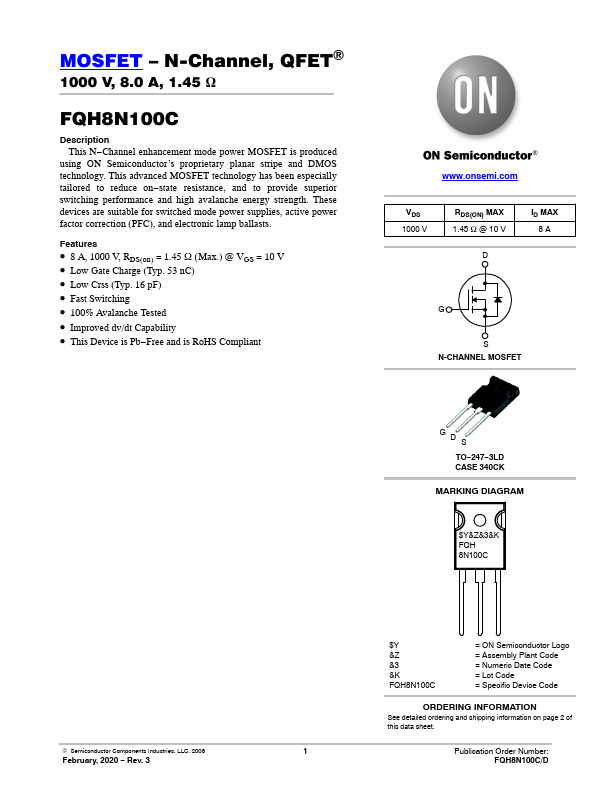

Preview of FQH8N100C PDF

Datasheet Details

Part number:

FQH8N100C

Manufacturer:

ON Semiconductor ↗

File Size:

420.08 KB

Description:

N-channel mosfet.

📁 Related Datasheet

FQH8N100C MOSFET (Fairchild Semiconductor)

FQH140N10 100V N-Channel MOSFET (Fairchild Semiconductor)

FQH18N50V2 500V N-Channel MOSFET (Fairchild Semiconductor)

FQH35N40 MOSFET (Fairchild Semiconductor)

FQH44N10 MOSFET (Fairchild Semiconductor)

FQH44N10 N-Channel QFET MOSFET (ON Semiconductor)

FQH44N10_F133 MOSFET (Fairchild Semiconductor)

FQH70N10 MOSFET (Fairchild Semiconductor)

FQH90N10V2 MOSFET (Fairchild Semiconductor)

FQH90N10V2 100V N-Channel MOSFET (Fairchild Semiconductor)

TAGS

FQH8N100C N-Channel MOSFET ON Semiconductor

Image Gallery

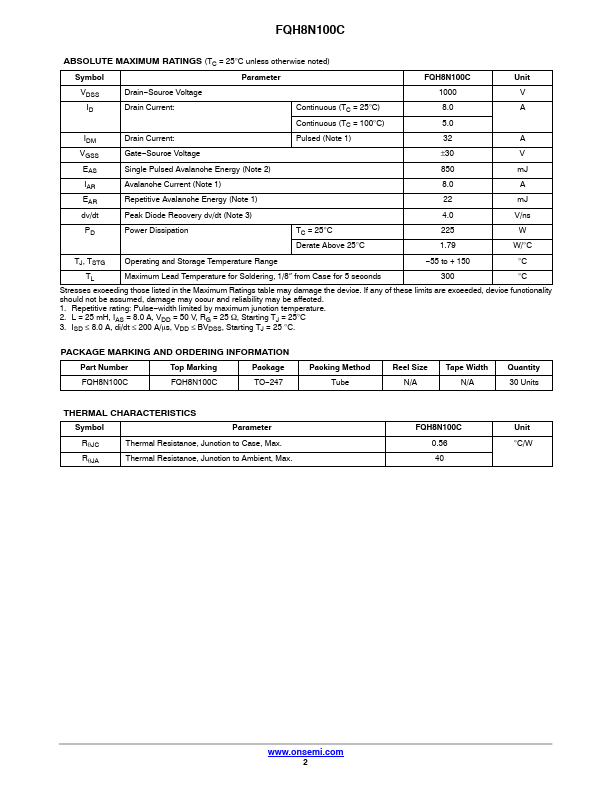

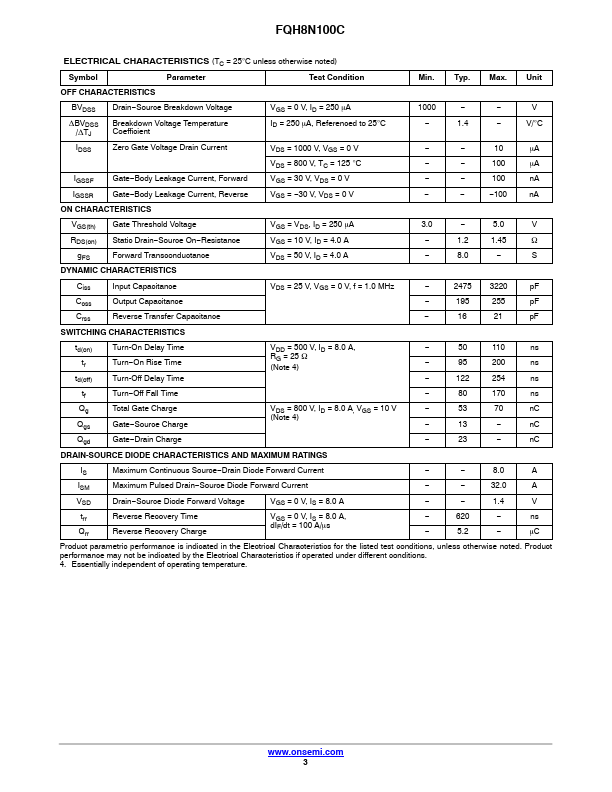

FQH8N100C Datasheet Preview Page 2 FQH8N100C Datasheet Preview Page 3
