M1MA141KT1 Datasheet - ON Semiconductor

M1MA141KT1 Single Silicon Switching Diode

ON Semiconductort Single Silicon Switching Diode This Silicon Epitaxial Planar Diode is designed for use in ultra high speed switching applications. This device is housed in the SC 70 package which is designed for low power surface mount applications. Fast trr, < 3.0 ns Low CD, < 2.0 pF Available in 8 mm Tape and Reel Use M1MA141/2KT1 to order the 7 inch/3000 unit reel. Use M1MA141/2KT3 to order the 13 inch/10,000 unit reel. M1MA141KT1 M1MA142KT1 ON Semico.

M1MA141KT1_ONSemiconductor.pdf

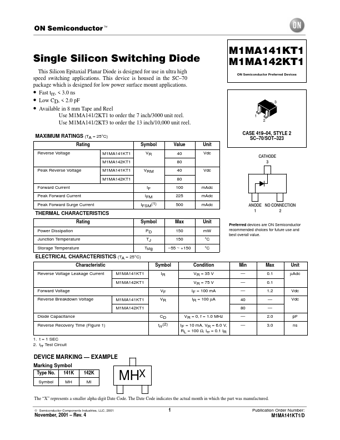

Preview of M1MA141KT1 PDF
M1MA141KT1 Datasheet Preview Page 2 M1MA141KT1 Datasheet Preview Page 3

Datasheet Details

Part number:

M1MA141KT1

Manufacturer:

ON Semiconductor ↗

File Size:

55.73 KB

Description:

Single silicon switching diode.
