M1MA142KT1 Single Silicon Switching Diode

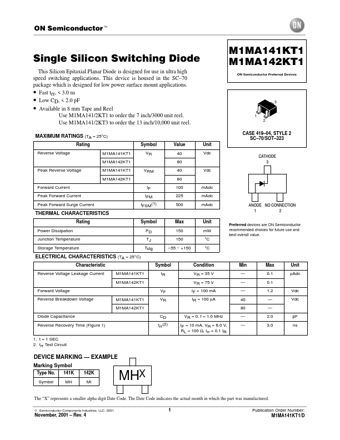

📥 Download Datasheet Datasheet Preview Page 1

Description

ON Semiconductort Single Silicon Switching Diode This Silicon Epitaxial Planar Diode is designed for use in ultra high speed switching applications..

📥 Download Datasheet

Preview of M1MA142KT1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* This device is housed in the SC
* 70 package which is designed for low power surface mount applications.
* Fast trr, < 3.0 ns
* Low CD, < 2.0 pF
* Available in 8 mm Tape and Reel Use M1MA141/2KT1 to order the 7 inch/3000 unit reel. Use M1MA141/2KT3 to order the 13 inch
