MC10EP01 - 4-Input OR/NOR

Datasheet Summary

Description

The MC10EP01 is a 4-input OR/NOR gate.

functionally equivalent to the EL01 device, LVEL01, and E101 (a quad version).

With AC performance much faster than the LVEL01 device, the EP01 is ideal for applications requiring the fastest AC performance available.

Features

  • 230 ps Typical Propagation Delay.
  • Maximum Frequency = > 3 GHz Typical.
  • PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V.
  • NECL Mode Operating Range: VCC = 0 V with VEE =.
  • 3.0 V to.
  • 5.5 V.
  • Open Input Default State.
  • These Devices are Pb-Free, Halogen Free and are RoHS Compliant www. onsemi. com 8 1 8 1 SOIC.
  • 8 NB TSSOP.
  • 8 DFN8 D SUFFIX DT SUFFIX MN SUFFIX CASE 751.
  • 07 CASE 948R.

📥 Download Datasheet

Datasheet preview – MC10EP01

Datasheet Details

Part number MC10EP01
Manufacturer ON Semiconductor
File Size 166.67 KB
Description 4-Input OR/NOR
Datasheet download datasheet MC10EP01 Datasheet
Additional preview pages of the MC10EP01 datasheet.

📁 Similar Datasheet

  • MC10EP16 - Differential Receiver (Motorola)
  • MC10E016 - 8-Bit Synchronous Binary Up Counter (Motorola)
  • MC10E101 - Quad 4-Input OR/NOR Gate (Motorola)
  • MC10E104 - QUINT 2-INPUT AND/NAND GATE (Motorola)
  • MC10E107 - QUINT 2-INPUT XOR/XNOR GATE (Motorola)
  • MC10E111 - 1:9 DIFFERENTIAL CLOCK DRIVER (Motorola)
  • MC10E112 - QUAD DRIVER (Motorola)
  • MC10E116 - QUINT DIFFERENTIAL LINE RECEIVER (Motorola)
  • MC10E122 - 9-BIT BUFFER (Motorola)
  • MC10E131 - 4-BIT D FLIP-FLOP (Motorola)
Other Datasheets by ON Semiconductor
  • MC10EP016 - 3.3V / 5VECL 8-Bit Synchronous Binary Up Counter
  • MC10EP05 - 2-Input Differential AND/NAND
  • MC10EP08 - 2-Input Differential XOR/XNOR
  • MC10EP101 - 3.3V / 5V ECL Quad 4-Input OR/NOR
  • MC10EP105 - Quad 2-Input Differential AND/NAND
  • MC10EP11 - 1:2 Differential Fanout Buffer
  • MC10EP116 - Hex Differential Line Receiver
  • MC10EP131 - ECL Quad D Flip-Flop

Full PDF Text Transcription

Click to expand full text

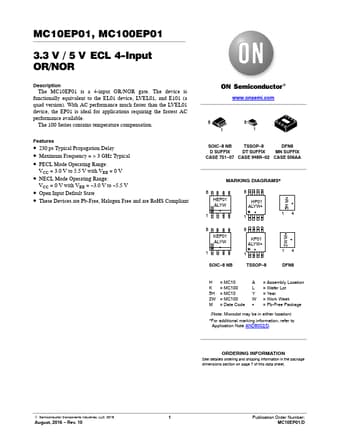

MC10EP01, MC100EP01 3.3 V / 5 V ECL 4-Input OR/NOR Description The MC10EP01 is a 4-input OR/NOR gate. The device is functionally equivalent to the EL01 device, LVEL01, and E101 (a quad version). With AC performance much faster than the LVEL01 device, the EP01 is ideal for applications requiring the fastest AC performance available. The 100 Series contains temperature compensation. Features • 230 ps Typical Propagation Delay • Maximum Frequency = > 3 GHz Typical • PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V • NECL Mode Operating Range: VCC = 0 V with VEE = −3.0 V to −5.5 V • Open Input Default State • These Devices are Pb-Free, Halogen Free and are RoHS Compliant www.onsemi.
