MC10EP08 - 2-Input Differential XOR/XNOR

ON Semiconductor

📥 Download Datasheet

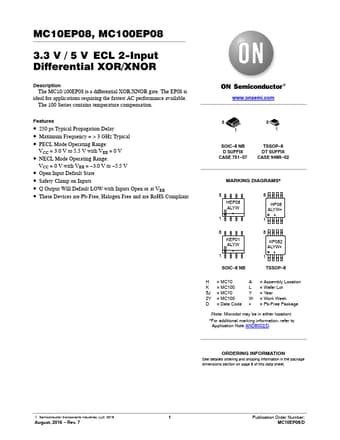

MC10EP08 Datasheet Preview — Preview of MC10EP08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MC10EP08
Manufacturer	ON Semiconductor ↗
File Size	162.96 KB
Description	2-Input Differential XOR/XNOR
Datasheet	MC10EP08_ONSemiconductor.pdf

MC10EP08 Product details

Description

The MC10/100EP08 is a differential XOR/XNOR gate.

Features

250 ps Typical Propagation Delay.
Maximum Frequency = > 3 GHz Typical.
PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V.
NECL Mode Operating Range: VCC = 0 V with VEE =.
3.0 V to.
5.5 V.
Open Input Default State.
Safety Clamp on Inputs.
Q Output Will Default LOW with Inputs Open or at VEE.
These Devices are Pb-Free, Halogen Free and are RoHS Compliant www. onsemi. com 8 1 8 1 SOIC.
8 N.
