MC10EP17, MC100EP17 - 3.3V / 5V ECL Quad Differential Driver/Receiver

ON Semiconductor

The MC10EP17 by ON Semiconductor is a 3.3V / 5V ECL Quad Differential Driver/Receiver. Below is the official datasheet preview.

📥 Download Datasheet

MC10EP17 3.3V / 5V ECL Quad Differential Driver/Receiver by ON Semiconductor - Datasheet Preview — Official preview page of the **MC10EP17** 3.3V / 5V ECL Quad Differential Driver/Receiver datasheet (ON Semiconductor).

Datasheet Details

Part number	MC10EP17, MC100EP17
Manufacturer	ON Semiconductor
File Size	216.46 KB
Description	3.3V / 5V ECL Quad Differential Driver/Receiver
Datasheet	MC100EP17_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC10EP17, MC100EP17. Please refer to the document for exact specifications by model.

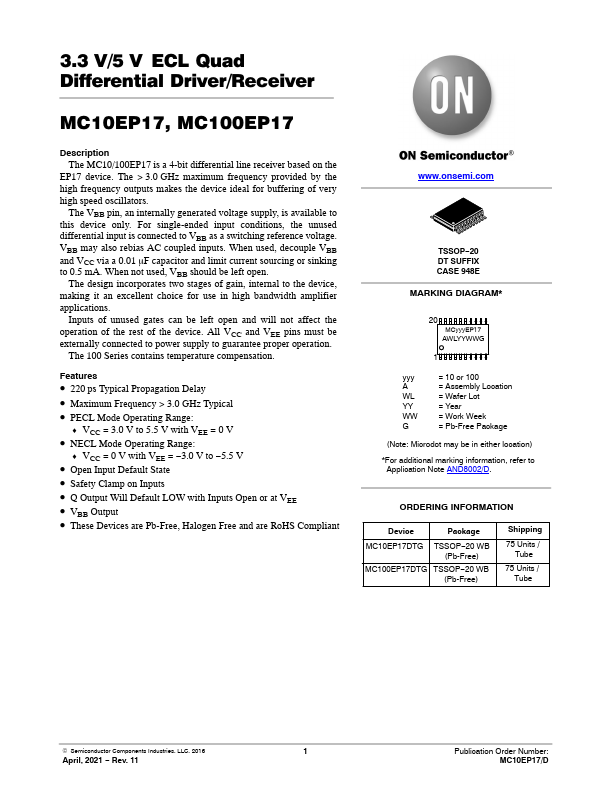

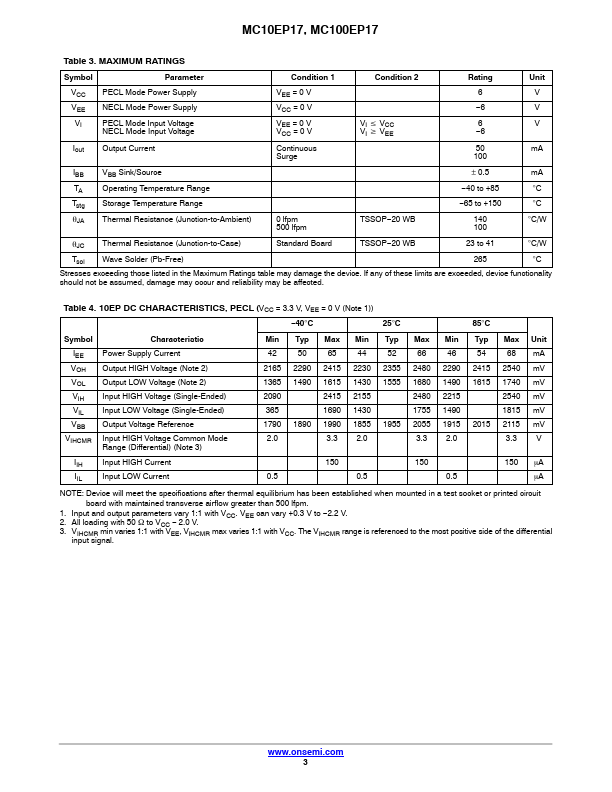

Additional preview pages of the MC10EP17 datasheet.

MC10EP17 Product details

Description

The MC10/100EP17 is a 4-bit differential line receiver based on the EP17 device.The > 3.0 GHz maximum frequency provided by the high frequency outputs makes the device ideal for buffering of very high speed oscillators.The VBB pin, an internally generated voltage supply, is available to this device only.For single-ended input conditions, the unused differential input is connected to VBB as a switching reference voltage.VBB may also rebias AC coupled inputs.When used, decouple VBB and VCC vi

Features

220 ps Typical Propagation Delay.
Maximum Frequency > 3.0 GHz Typical.
PECL Mode Operating Range:.
VCC = 3.0 V to 5.5 V with VEE = 0 V.
NECL Mode Operating Range:.
VCC = 0 V with VEE =.
3.0 V to.
5.5 V.
Open Input Default State.
Safety Clamp on Inputs.
Q Output Will Default LOW with Inputs Open or at VEE.
VBB Output.
These Devices are Pb-Free, Halogen Free and are RoHS Compliant w.
