MC10EPT20 - 3.3V LVTTL/LVCMOS to Differential LVPECL Translator

ON Semiconductor

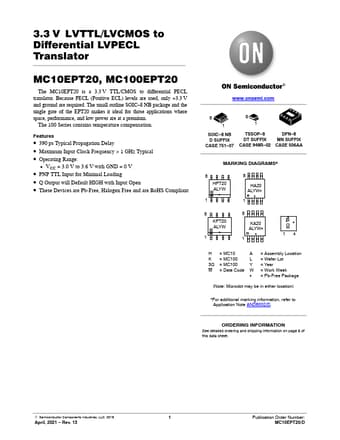

MC10EPT20 Datasheet Preview — Preview of MC10EPT20 PDF

Datasheet Details

Part number	MC10EPT20
Manufacturer	ON Semiconductor ↗
File Size	323.79 KB
Description	3.3V LVTTL/LVCMOS to Differential LVPECL Translator
Datasheet	MC10EPT20_ONSemiconductor.pdf

MC10EPT20 Product details

Description

PIN Q, Q D VCC GND NC FUNCTION Differential PECL Outputs LVTTL Input Positive Supply Ground No Connect EP (DFN8 only) Thermal exposed pad must be connected to a suffi- cient thermal conduit.Electrically connect to the most negative sup- ply (GND) or leave unconnected, floating open.Figure 1. 8 Lead Pinout (Top View) and Logic Diagram Table 2. ATTRIBUTES Characteristics Internal Input Pulldown Resistor Internal Input Pullup Resistor ESD Protection Human Body Model Machine Mod

Features

390 ps Typical Propagation Delay.
Maximum Input Clock Frequency > 1 GHz Typical.
Operating Range:.
VCC = 3.0 V to 3.6 V with GND = 0 V.
PNP TTL Input for Minimal Loading.
Q Output will Default HIGH with Input Open.
These Devices are Pb-Free, Halogen Free and are RoHS Compliant www. onsemi. com 8 1 8 1 SOIC.
8 NB TSSOP.
8 DFN.
8 D SUFFIX DT SUFFIX MN SUFFIX CASE 751.
07 CASE 948R.
02 CASE 506.
