NB7VQ1006M

1.8V / 2.5V 10Gbps Equalizer Receiver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi NB7VQ1006MMNG IC EQUALIZER RECEIVER 24-QFN DigiKey 173 92 units
$28.67

NB7VQ1006M Datasheet (1.29 MB)

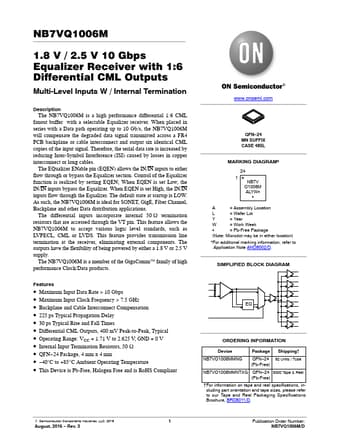

Preview of NB7VQ1006M PDF

Datasheet Details

Part number:

NB7VQ1006M

Manufacturer:

ON Semiconductor ↗

File Size:

1.29 MB

Description:

1.8v / 2.5v 10gbps equalizer receiver.

NB7VQ1006M Features

* Maximum Input Data Rate > 10 Gbps

* Maximum Input Clock Frequency > 7.5 GHz

* Backplane and Cable Interconnect Compensation

* 225 ps Typical Propagation Delay

* 30 ps Typical Rise and Fall Times

* Differential CML Outputs, 400 mV Peak-to-Peak, Typica

NB7VQ1006M General Description

The NB7VQ1006M is a high performance differential 1:6 CML fanout buffer with a selectable Equalizer receiver. When placed in series with a Data path operating up to 10 Gb/s, the NB7VQ1006M will compensate the degraded data signal transmitted across a FR4 PCB backplane or cable interconnect and outpu.
