NB7VQ58M

1.8V / 2.5V / 3.3V Differential 2:1 Clock/Data Multiplexer / Translator

NB7VQ58M Features

* 1 QFN

* 16 MN SUFFIX CASE 485G A L Y W G NB7V Q58M ALYW G G = Assembly Location = Wafer Lot = Year = Work Week = Pb

* Free Package (Note: Microdot may be in either location)

* For additional marking information, refer to Application Note AND8002/D. SIMPLIFIED BLOCK DIAGRAM VCC EQ

NB7VQ58M General Description

1 http://onsemi.com MARKING DIAGRAM
* 16 The NB7VQ58M is a high performance differential 2

*to

*1 Clock or Data multiplexer with a selectable Equalizer receiver. When placed in series with a Clock /Data path operating up to 7 GHz or 10.7 Gb/s, respectively, the NB7VQ58M inputs wil.

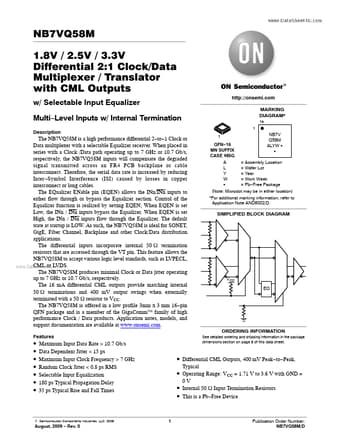

NB7VQ58M Datasheet (1.28 MB)

Preview of NB7VQ58M PDF

Datasheet Details

Part number:

NB7VQ58M

Manufacturer:

ON Semiconductor ↗

File Size:

1.28 MB

Description:

1.8v / 2.5v / 3.3v differential 2:1 clock/data multiplexer / translator.
NB7VQ58M 1.8V / 2.5V / 3.3V Differential 2:1 Clock/Data Multiplexer / Translator with CML Outputs w/ Selectable Input Equalizer Multi

*Level In.
