NB7VQ14M

a high performance differential 1:4 CML fanout buffer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi NB7VQ14MMNHTBG IC CLK BUFFER 1:4 8.5GHZ 16QFN DigiKey 400 200 units
$6.31

NB7VQ14M Datasheet (1.28 MB)

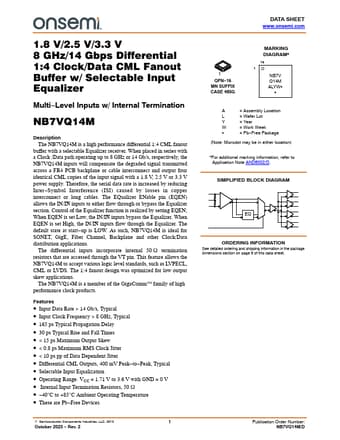

Preview of NB7VQ14M PDF

Datasheet Details

Part number:

NB7VQ14M

Manufacturer:

ON Semiconductor ↗

File Size:

1.28 MB

Description:

A high performance differential 1:4 cml fanout buffer.
1.8 V/2.5 V/3.3 V 8 GHz/14 Gbps Differential 1:4 Clock/Data CML Fanout Buffer w/ Selectable Input Equalizer Multi

*Level Inputs w/ Internal Ter.

NB7VQ14M Features

* Input Data Rate > 14 Gb/s, Typical

* Input Clock Frequency > 8 GHz, Typical

* 165 ps Typical Propagation Delay

* 30 ps Typical Rise and Fall Times

* < 15 ps Maximum Output Skew

* < 0.8 ps Maximum RMS Clock Jitter

* < 10 ps pp of Data Dependen

NB7VQ14M General Description

The NB7VQ14M is a high performance differential 1:4 CML fanout buffer with a selectable Equalizer receiver. When placed in series with a Clock /Data path operating up to 8 GHz or 14 Gb/s, respectively, the NB7VQ14M inputs will compensate the degraded signal transmitted across a FR4 PCB backplane or .

📁 Related Datasheet

NB7VQ1006M - 1.8V / 2.5V 10Gbps Equalizer Receiver (ON Semiconductor)
NB7VQ1006M 1.8 V / 2.5 V 10 Gbps Equalizer Receiver with 1:6 Differential CML Outputs Multi-Level Inputs W / Internal Termination Description The NB7V.

NB7VQ572M - 1.8V / 2.5V /3.3V Differential 4:1 Mux w/Input Equalizer to 1:2 CML Clock/Data Fanout / Translator (ON Semiconductor)
NB7VQ572M 1.8V / 2.5V /3.3V Differential 4:1 Mux w/Input Equalizer to 1:2 CML Clock/Data Fanout / Translator Multi−Level Inputs w/ Internal Terminati.

NB7VQ58M - 1.8V / 2.5V / 3.3V Differential 2:1 Clock/Data Multiplexer / Translator (ON Semiconductor)
NB7VQ58M 1.8V / 2.5V / 3.3V Differential 2:1 Clock/Data Multiplexer / Translator with CML Outputs w/ Selectable Input Equalizer Multi−Level Inputs w/ .

NB7V32M - Clock Divider (ON Semiconductor)
1.8 V/2.5 V, 10 GHz ÷2 Clock Divider with CML Outputs Multi−Level Inputs w/ Internal Termination NB7V32M Description The NB7V32M is a differential B2.

NB7V33M - 1.8V / 2.5V 10GHz Div By 4 Clock Divider (ON Semiconductor)
NB7V33M 1.8V / 2.5V, 10GHz ÷4 Clock Divider with CML Outputs Multi−Level Inputs w/ Internal Termination Description The NB7V33M is a differential B4 C.

NB7V52M - 1.8V / 2.5V Differential D Flip-Flop (ON Semiconductor)
NB7V52M 1.8V / 2.5V Differential D Flip-Flop w/ Reset and CML Outputs Multi−Level Inputs w/ Internal Termination Description The NB7V52M is a 10 GHz .
